Egg Crate Grill

Egg Crate Grill

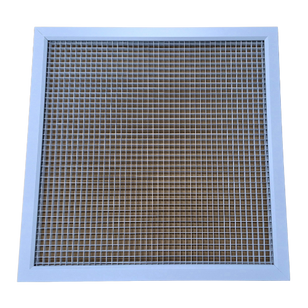

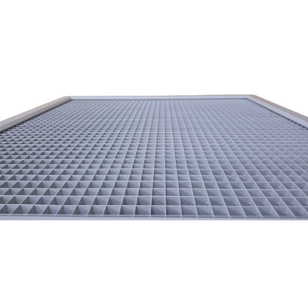

Egg crate grilles consist of two primary components: an extruded aluminium frame and aluminium cube cores measuring 12.5 mm × 12.5 mm × 12.5 mm. The cores are securely fixed within a specially designed frame, and the frame corners are reinforced with crimped flat keys to ensure a robust and durable assembly.

In addition to their common use for return and exhaust air, egg crate grilles can also serve as supply air outlets when fitted with opposed-blade dampers, providing controlled airflow. The dampers can be adjusted from the front of the grille using a screwdriver. Damper blades are mounted with nylon bushings to ensure smooth, rattle-free operation.

Features:

  • High free-area core for efficient airflow

  • Low-pressure drop for energy-efficient operation

  • Premium extruded aluminium damper with matte black finish

Material & Finish:

  • Frame constructed from high-quality extruded aluminium, standard flange width 37 mm

  • Inner egg crate cores made of 12.5 mm × 12.5 mm × 12.5 mm aluminium louvers

  • Finished with powder-coated RAL 9016 as standard, other finishes available on request
